Aluminum Copper Resistance Spot Welding Machine Industrial Small Micro

Brand Name : XWH

Model Number : XW

Certification : CE

Place of Origin : China

MOQ : 1

Price : $500.00 - $700.00

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 Set/Sets per Month

Delivery Time : 15 working days

Packaging Details : Wooden Case

Product name : Industrial Small Micro Aluminum Copper Resistance Spot Welding Machine Spot Welder

Frequency : 50HZ/60HZ

Dimensions : Customized Size

Welding time : 0～9.99s

Application : Stainless Steel and Low Carbon Steel

Machine type : Foot Operated Spot Welder

Max. Welding Thickness : 3+3.mm

Contact Now

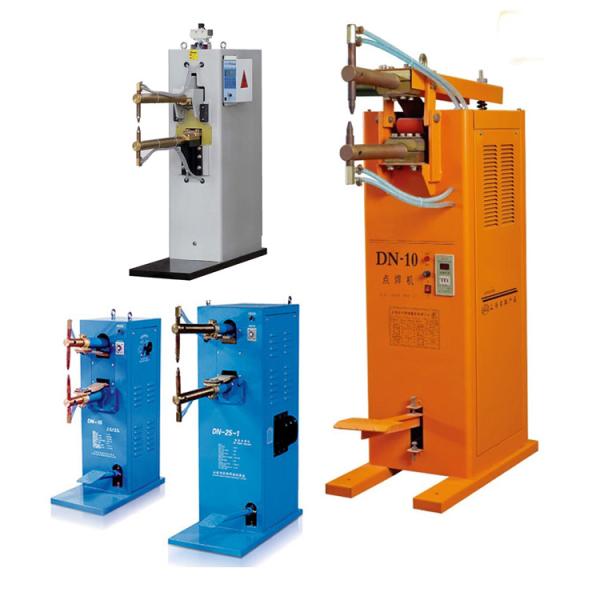

Industrial Small Micro Aluminum Copper Resistance Spot Welding Machine Spot Welder

Product Introduction

ChengDu Xinwei is one of the leading welding equipment manufacturer in china, Specialized in manufacturing

and provide customers with a complete set of welding solutions.

A R&D team of more than 20 engineers., and a 20000 sq.m manufacturer, which guarantees that we can offer

customers the most professional welding advice and after-sales service.

And we have our own overseas technical service teams in many countries in Southeast Asia and South America

to provide customers with on-site installation and maintenance services.(Please contact us to ask if there is a

technical team in your country)

Product Welding Video	We provide technical guidance videos, product welding videos, and samples please contact us.
Overseas on-site technical team	South America, Southeast Asia,etc
One-stop service	MIG / TIG / Spot welding machine / Seam welding machine / Welding robot / Suspended Transmission System / Controller / Spring Balancer / Electrode
Models Item	DN-35	DN-25	DN-16	DN-10
Rated Power at 50%	35KVA	25KVA	16KVA	10KVA
Rated Primary Power	380V	380V	380V	380V
Rated Primary Current	92A	66A	42.1A	26.3A
Rated Duty Cycle	10%	10%	10%	10%
Secondary Unload Voltage	2.6～4.2V	2.3～3.55V	1.98～3.01V	1.65～2.4V
Adjustment Rated	4	4	4	4
Welding Time Adjustment	0～9.99s	0～9.99s	0～9.99s	0～9.99s
Arms Length	280mm	280mm	280mm	260mm
Max. Welding Capacity	3+3mm	2.5+2.5mm	2+2mm	1.5+1.5mm
Cooling Ways	Main Transformer: Air Electrode: Water

Feature:

1) Adopt a lever-petal type spring pressure structure, easy to operate and maintain

2) Adjustable welding time and good welding repeatability

3) Widely used in automobile, aviation, construction, machinery, metal products, electrical switches and so on

4) Widely used for welding of low carbon steel, wire, stainless steel plate etc.

Aluminum Copper Resistance Spot Welding Machine Industrial Small Micro

Company Information

Chengdu Xinwei Welding Technology Co., Ltd is a high-tech corporation integrated with researching, developing, manufacturing, marketing and service. Our company was established in decades ago and produces resistance welding machine and relative products. Now it is located in Eastern Industrial Zone, Xindu, Chengdu.

Our machines were exported to Australia, Pakistan, Mexico, Italy, United Arab Emirates, Malaysia, Argentina, Jordan, Hongkong and other more 40 countries.

Our main product: Portable Spot Welder, Portable MF Spot Welder, Suspension Spot Welding Machine, Stationary Resistance Spot Welding Machine, Robotic Welding Gun, Nut Feeder, Micro-computer resistance controller,etc.

Certifications

Service

1. Any inquiries will be answered within 12 hours, we have been tilling in the welding equipment business for more than 17 years.

2. Professional welding project solution.

3, Detailed product usage technical guidance video.

4. Professional overseas on-site technical team.

5. After-sale service:

1) All products will go through strict quality check in our factory before packing, we have experienced QC team who is in charge of quality checking before shipping.

2) All products will be well packed before shipping.

3) Our products have a 1-3 year warranty, and we are sure our products will be free from maintenance within the warranty period in general, even core components have lifetime warranty.

Customer Audit

Exhibitons

Transportation Display

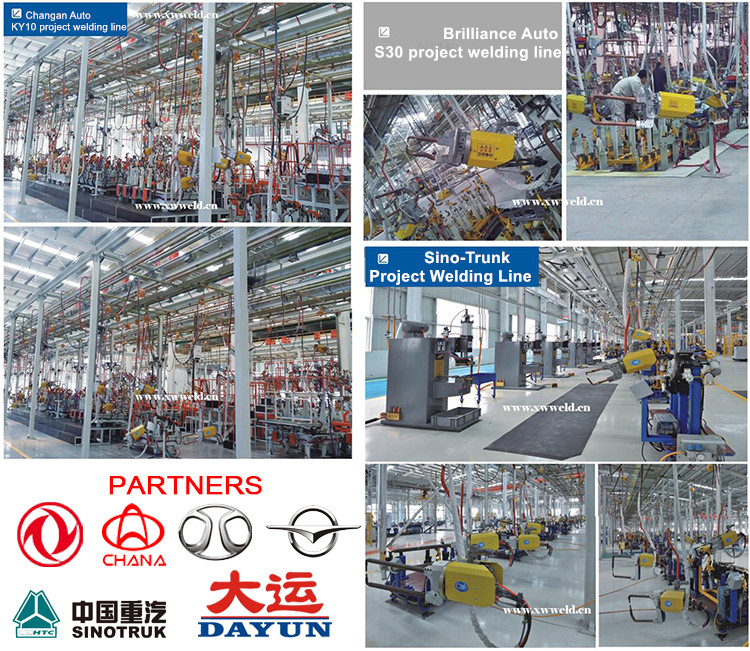

Xinwei Welding Project

FAQ

Q1: Are you a factory or trading company?

A: We are a factory and we have a special agent for foreign trading.

Q2: Can I get some samples?

A: Yes, after price and order confirmed, you can require for samples. We are glad to offer you samples.

Q3: How does your factory do regarding quality control?

A: Our factory has gained CE certificate, CCC certificate and ISO9002 authentication. Quality makes us who we are today. We focus on the quality from the very beginning to the end.

Q4: When can I get the quotation?

A: We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price, please send the message on trade management or call us directly. In a word, we’ll reply you as soon as possible.

Q5: Why should I trust you? Why should I choose you?

A: We’ve been specializing in air compressors for 35 years, we have the most professional production team; the most reliable quality, with 18 million dollars exporting gross valve.
