Resistance Welders China Stainless Steel Aluminium Inverter Spot Welding Machine
Product Introduction
The multi head spot welder is customized for welding the car fuel tank. The welding machine is is mainly composed of welding equipment host, welding fixture, welding power supply system, PLC electrical control system and other components.
This type of welding machine is widely used in aerospace, automobile and automobile parts manufacturing,new energy and power battery and other special areas of high quality welding requirements.
Technical Parameters
| Models/Item | D(N)B--160 | D(N)B--200 | D(N)B--250 |
| Rated power (KVA) | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current(KA) | 40 | 40 | 45 |
| Max. force (N) | 6000 | 10000 | 15000 |
| Electrode length(MM) | 450 | 450 | 500 |
| Working stroke(MM) | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 |
| Max.welding capacity(MM) | 4.0+4.0 | 5.0+5.0 | 6.0+6.0 |
Advantages
1. The welding current is DC. When there are inductive/magnetic materials in the secondary winding, the welding will not be affected;
2. The three-phase power supply is more adaptable to the fluctuation and voltage drop of the power grid;
3. The process is more reliable, and DC welding will be better for most of the metals with resistance welding;
4. Reduce operation cost, including saving welding energy at each point and shortening welding cycle;
Structure

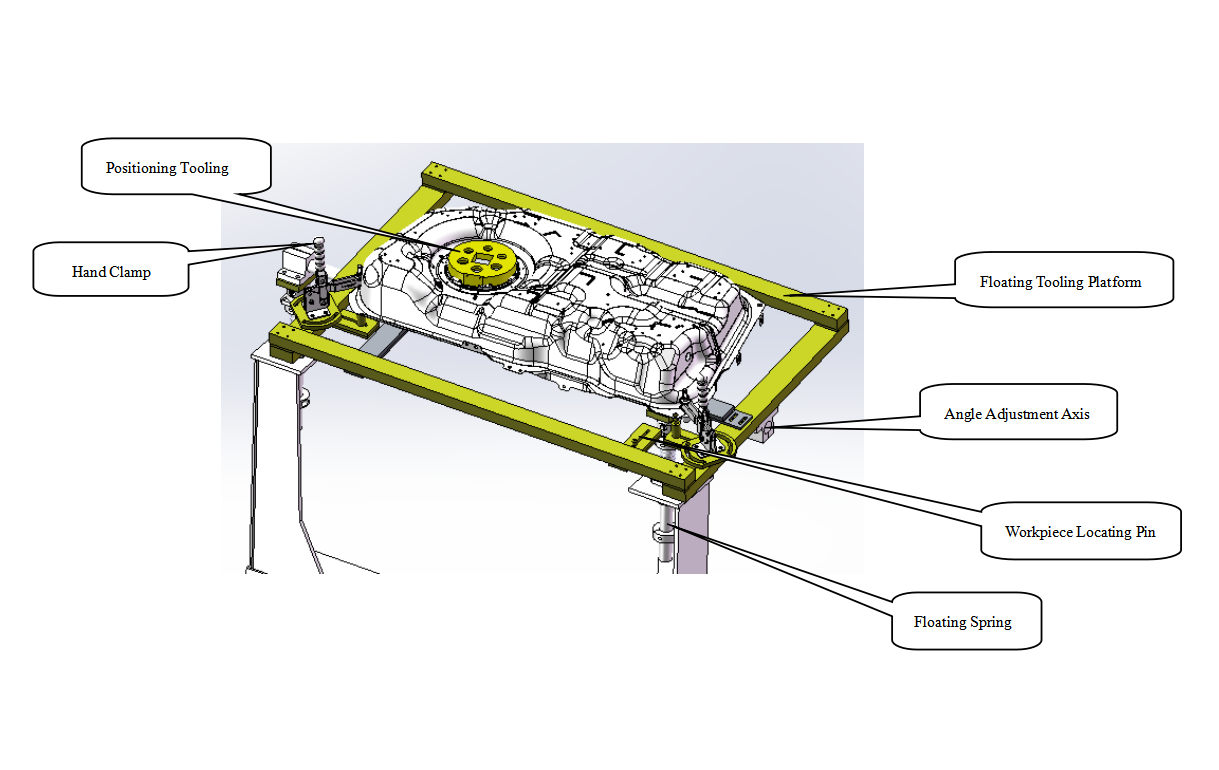

Welding equipment host, welding fixture, welding power supply system, PLC electrical control system and other components

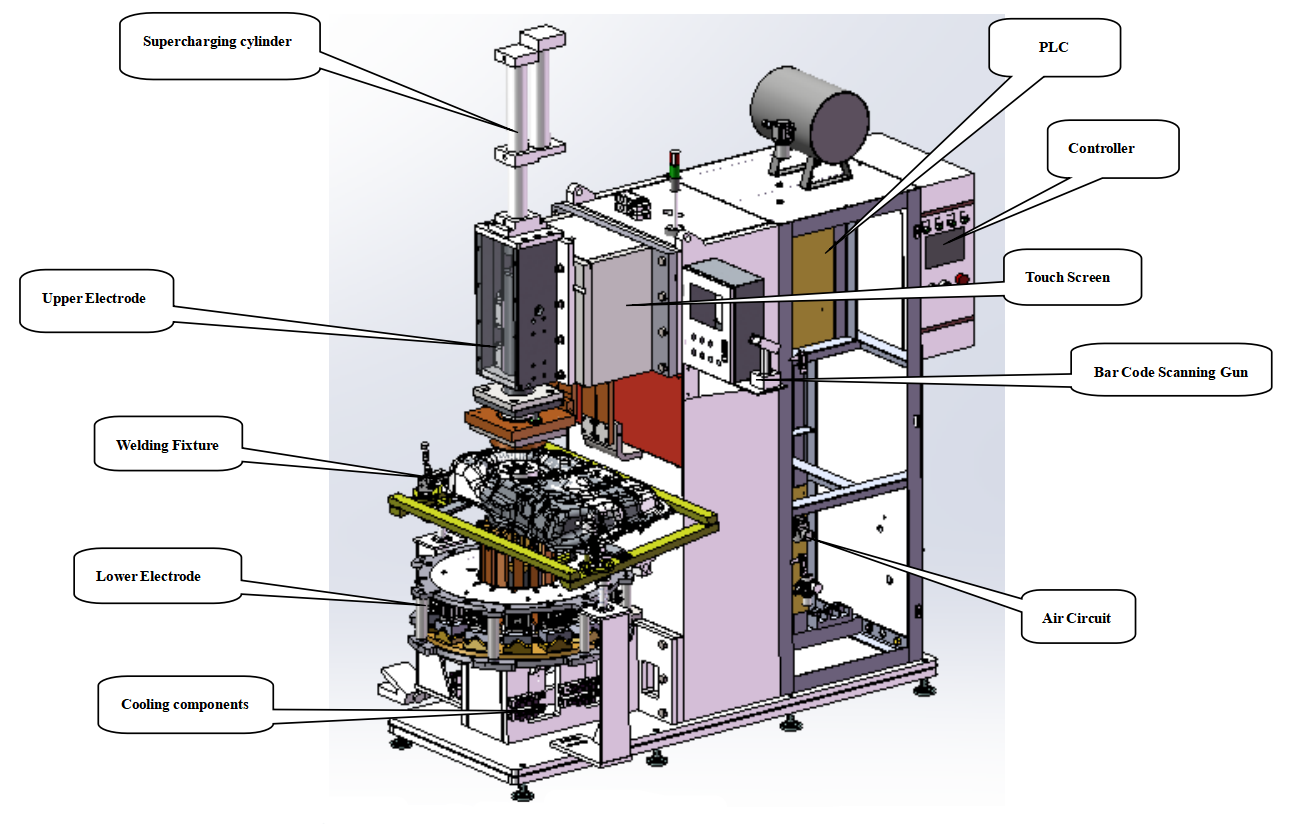

Parts included but not limited to supercharging cylinder, controller, touch screen, upper electode, bar code scanning gun, lower electode, air circuit, cooling components.
Safety Precautions of Electric Shock
Touching live parts can cause fatal electric shock or severe burns. When the welding machine power is turned on, the electrode and workpiece circuit will be electrified at any time. In addition, the input power circuit of the welding machine and the internal power circuit of the welding machine will also be electrified after the welding machine power is turned on. When using the wire feeder, touching the welding wire, wire reel, wire feeder and all metal parts during welding will cause electric shock. Incorrect installation and grounding of the welding machine are very dangerous, which may lead to electric shock.

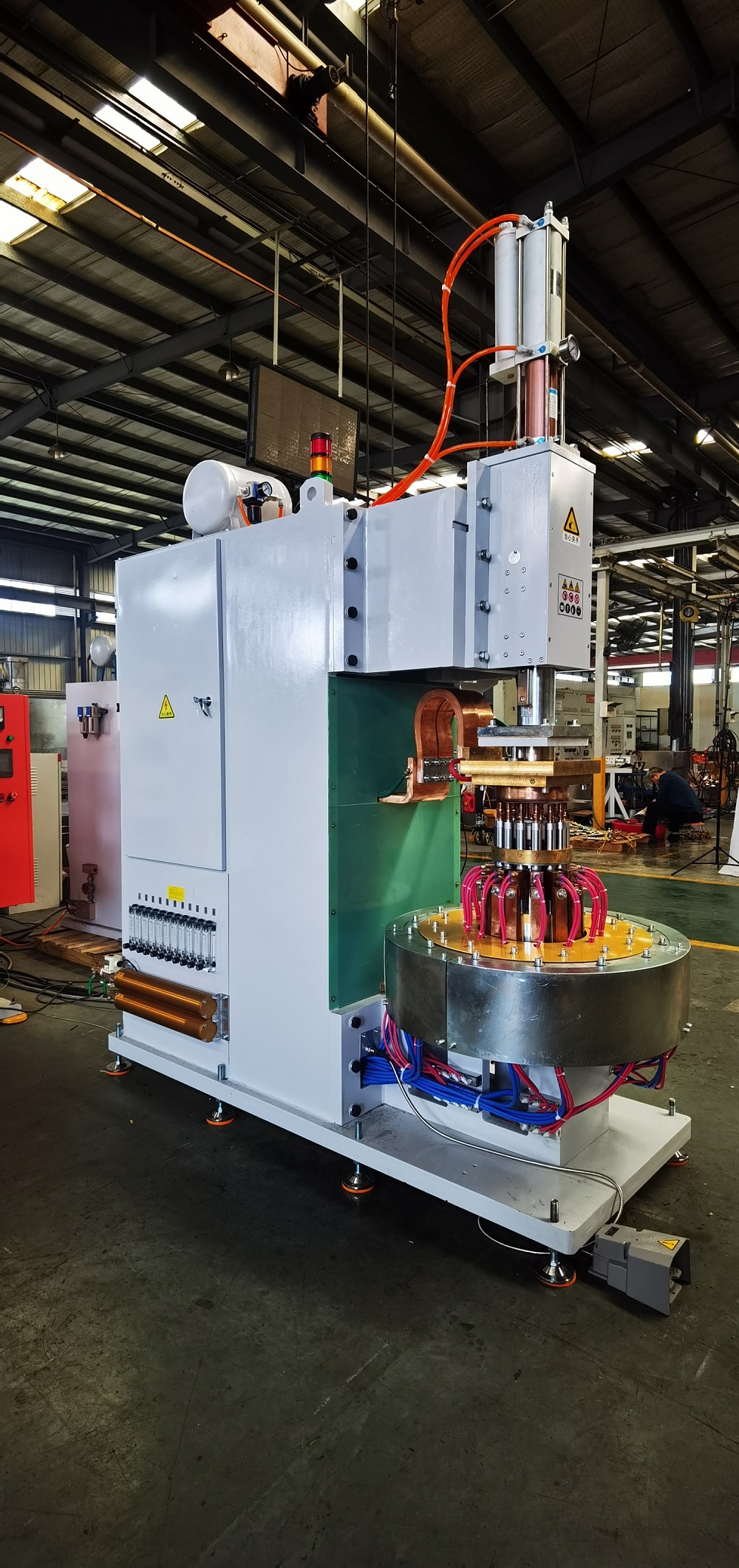

Images

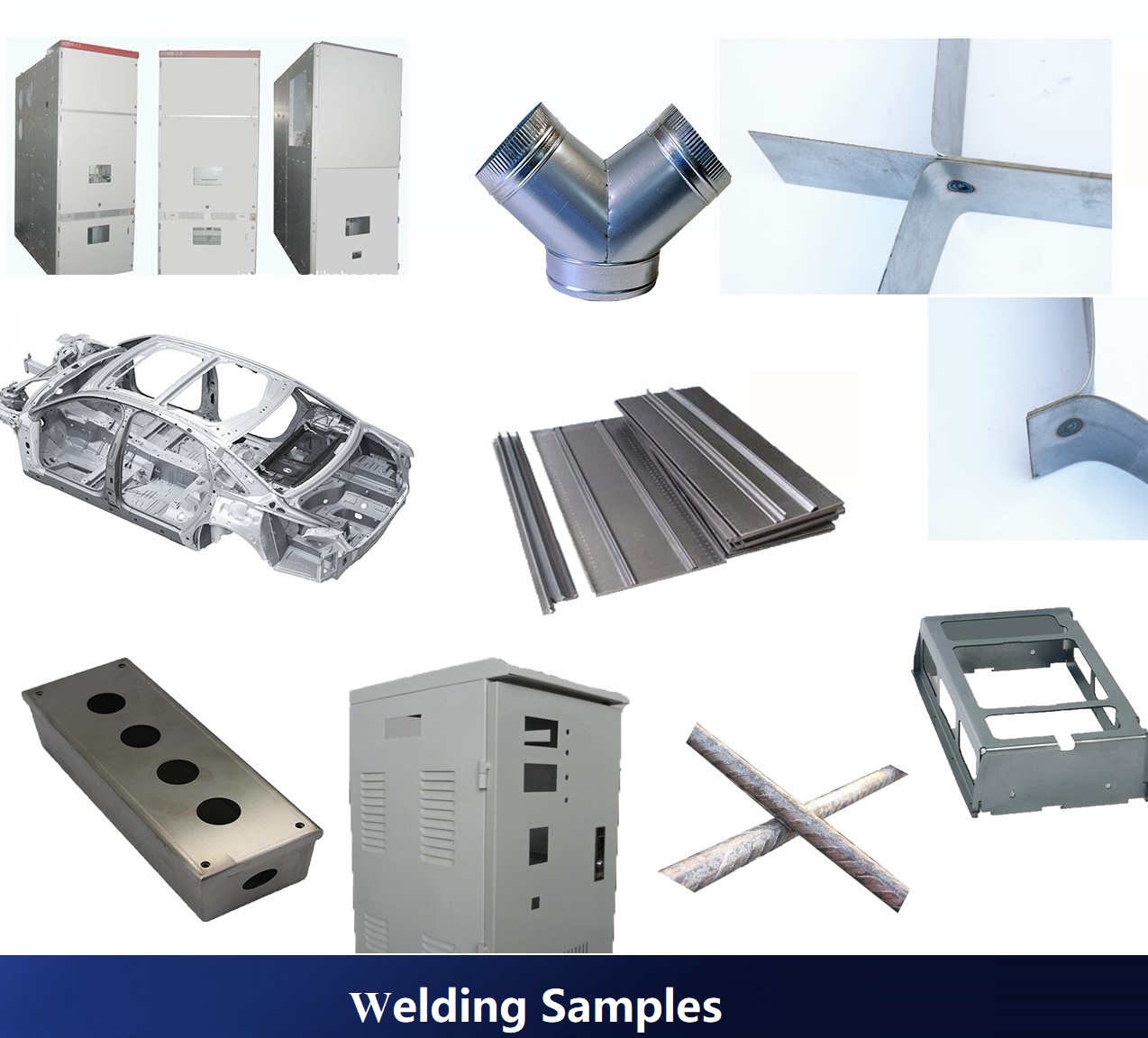

Application
Frequently Asked Questions
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.
5. How to contact you?
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
