Wire Shelf Automatic Point Welder Mesh Spot Welding Machine

Wire Shelf Automatic Welded Point Welder Welding Wire Machines Spot Welded Mesh

Product Introduction

The multi head spot welding machine adopts the advanced structure of foreign equipment and fully combines with a semi-automatic welding equipment developed in the Chinese market that is completely different from the currently used semi-automatic welding equipment by various manufacturers. It completely overcomes the shortcomings of high labor intensity, low production efficiency, complex operation, large spatter, weak welding, high failure rate, and low automation of the original welding machine, and can produce various 6MM series steel bars (electrode replacement is sufficient).

Technical Parameters

Advantages

1. The rebar mesh welding machine adopts a pneumatic electrode that automatically adjusts the pre tightening force, with a relatively constant pre pressure. Compared to spring pre pressing, it has the characteristics of less electrode impact, less electrode wear, and more secure welding points. The spatter during the welding process is further reduced, and the electrode life is further extended.

2. The key electrical components of this product are controlled by PLC, and intelligent management is implemented for equipment operation. The touch screen operation makes the operation more convenient and concise.

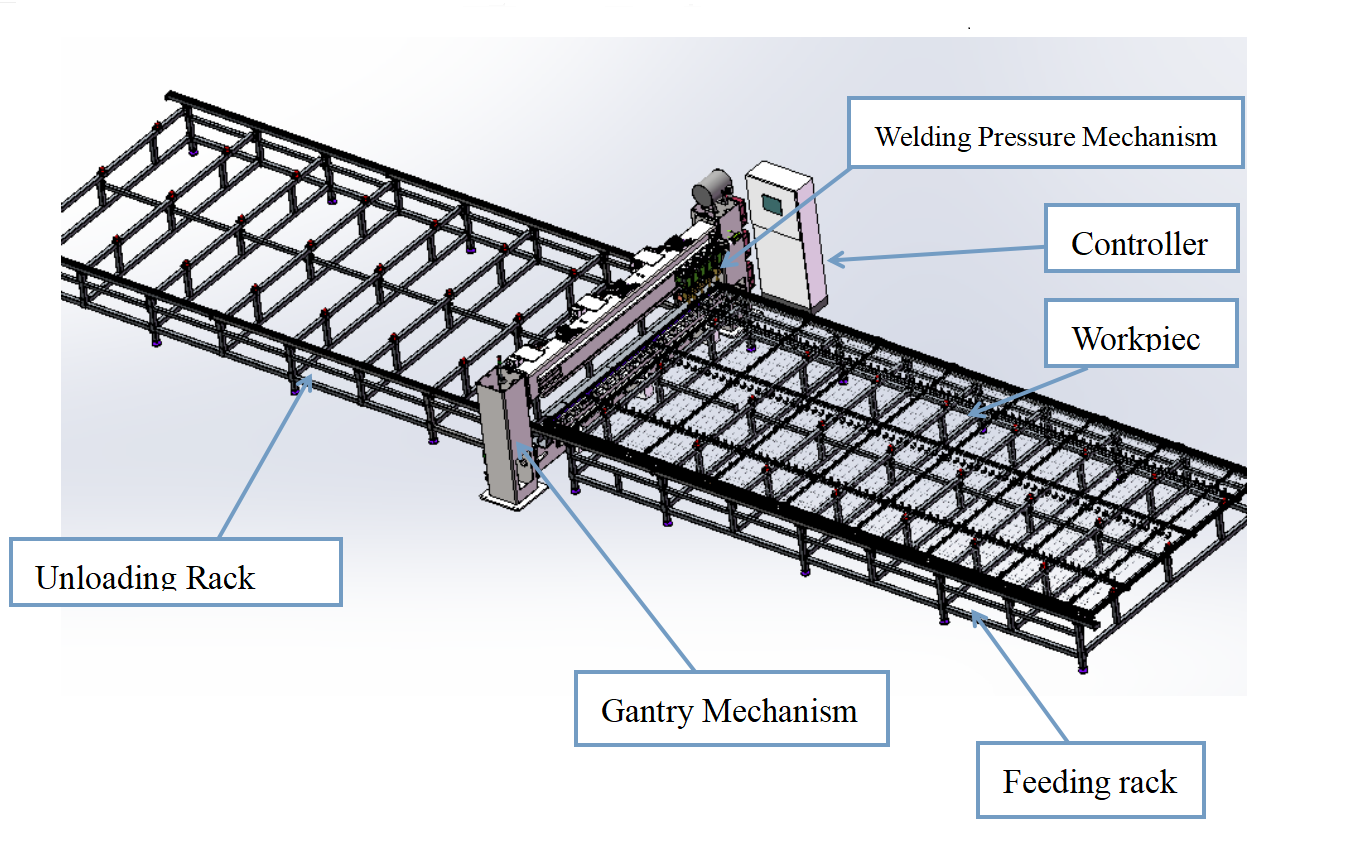

Major Structure

The multi head spot welding machine is a gantry type frame used to install related components and withstand welding pressure; The welding machine is fixed, and the workpiece moves along the X-axis.

Work Principle

1. The forward drive of the workpiece is driven by a servo motor with precision gear and rack drive, and the step size can be freely controlled. It is relatively convenient to change the specifications of the workpiece.

2. Workpiece 2 (4-6 points per row). On the fixture, use one welding machine to spot weld each row three times, and then automatically advance to the next row of welding points. At the position of the inclined welding points, there is a servo driven positioning welding. The machine will tand by until all solder joints are completed.

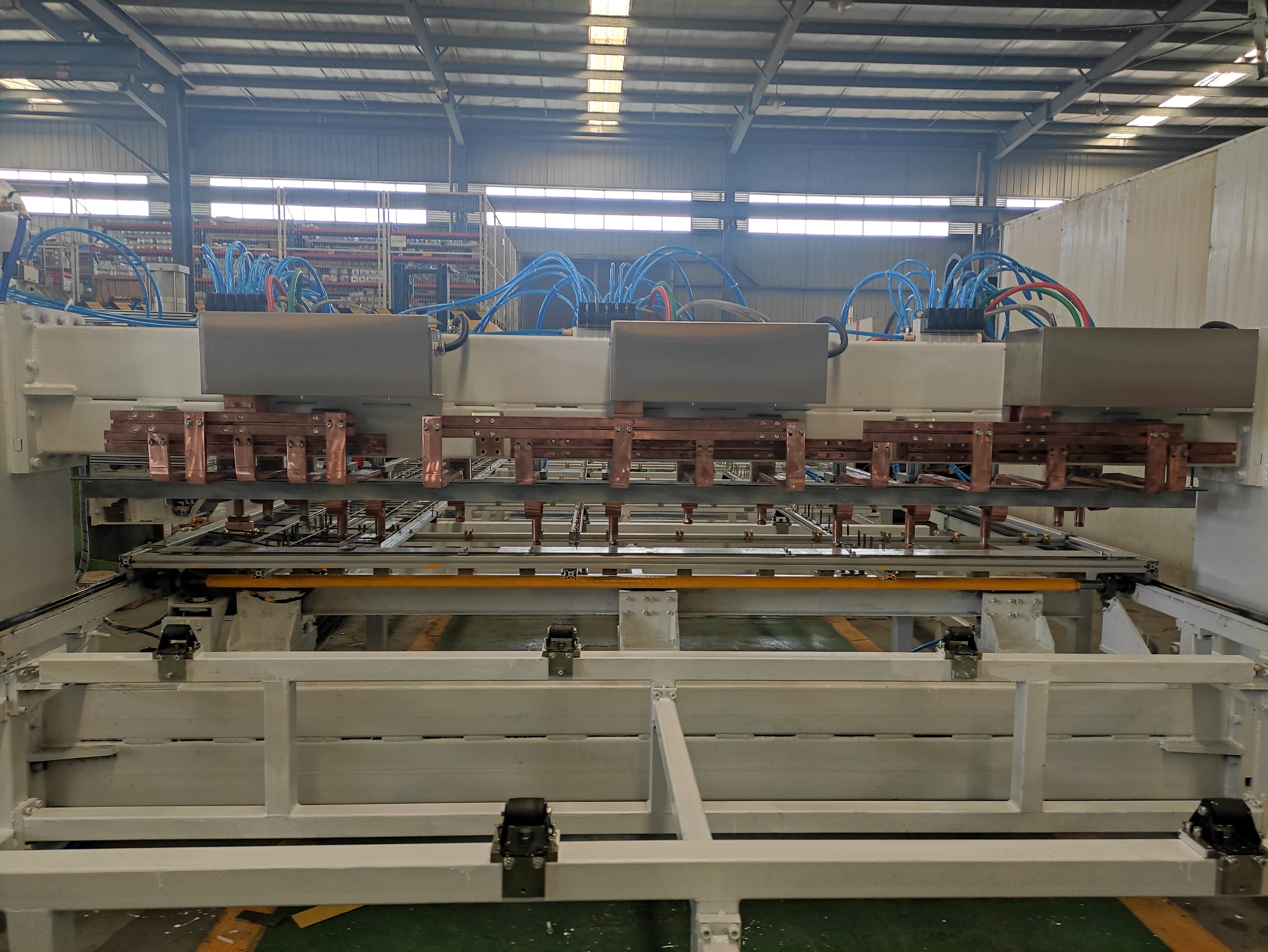

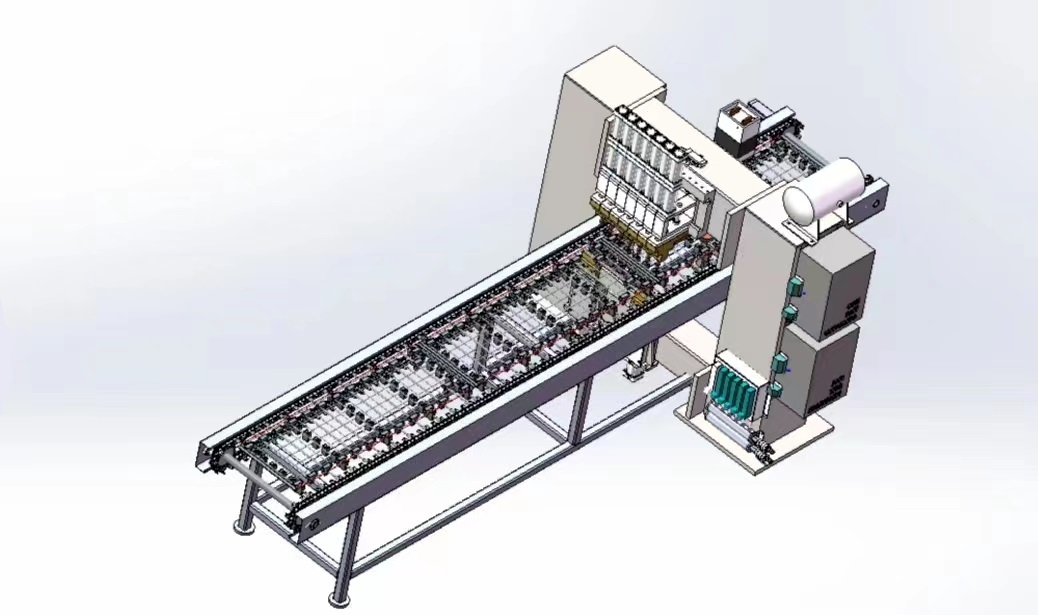

Reference Pictures

Frequently Asked Questions

1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized machines should be more than 25 days.

2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection by QC department before shipping.

3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can provide customize service according to your requirement.

4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to send us payment.

5. How to contact you?
You can send a mail for us and call us.

6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.

7.How about your transport packing? Is it possible to damage the machine during the transportation?
We have rich experience on international transportation. All the packing are extra thickness carton filling with protective PE foam and waterproof membrane. No damage happened during transportation until now.

8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
